(Peer-Reviewed) All-optical controlled-NOT logic gate achieving directional asymmetric transmission based on metasurface doublet
Yijia Huang 黄奕嘉 ¹, Tianxiao Xiao ², Shuai Chen 陈帅 ⁴, Zhengwei Xie 谢征微 ¹, Jie Zheng 郑杰 ¹, Jianqi Zhu 祝建琦 ¹, Yarong Su 苏亚荣 ¹, Weidong Chen 陈卫东 ¹, Ke Liu 刘科 ¹, Mingjun Tang 唐明君 ¹, Peter Müller-Buschbaum ² ³, Ling Li 李玲 ¹
¹ Laboratory of Micro-Nano Optics, College of Physics and Electronic Engineering, Sichuan Normal University, Chengdu 610101, China
中国 成都 四川师范大学 物理与电子工程学院 微纳光学实验室
² Physik-Department, Lehrstuhl für Funktionelle Materialien, Technische Universität München, James-Franck-Straße 1, 85748, Garching, Germany
³ Heinz Maier-Leibnitz Zentrum (MLZ), Technische Universität München, Lichtenbergstraße. 1, 85748, Garching, Germany
⁴ Tianjin Huahuixin Technology Group Co., Ltd, Zhongtian Avenue, Tianjin 300467, China
Opto-Electronic Advances, 2023-07-20

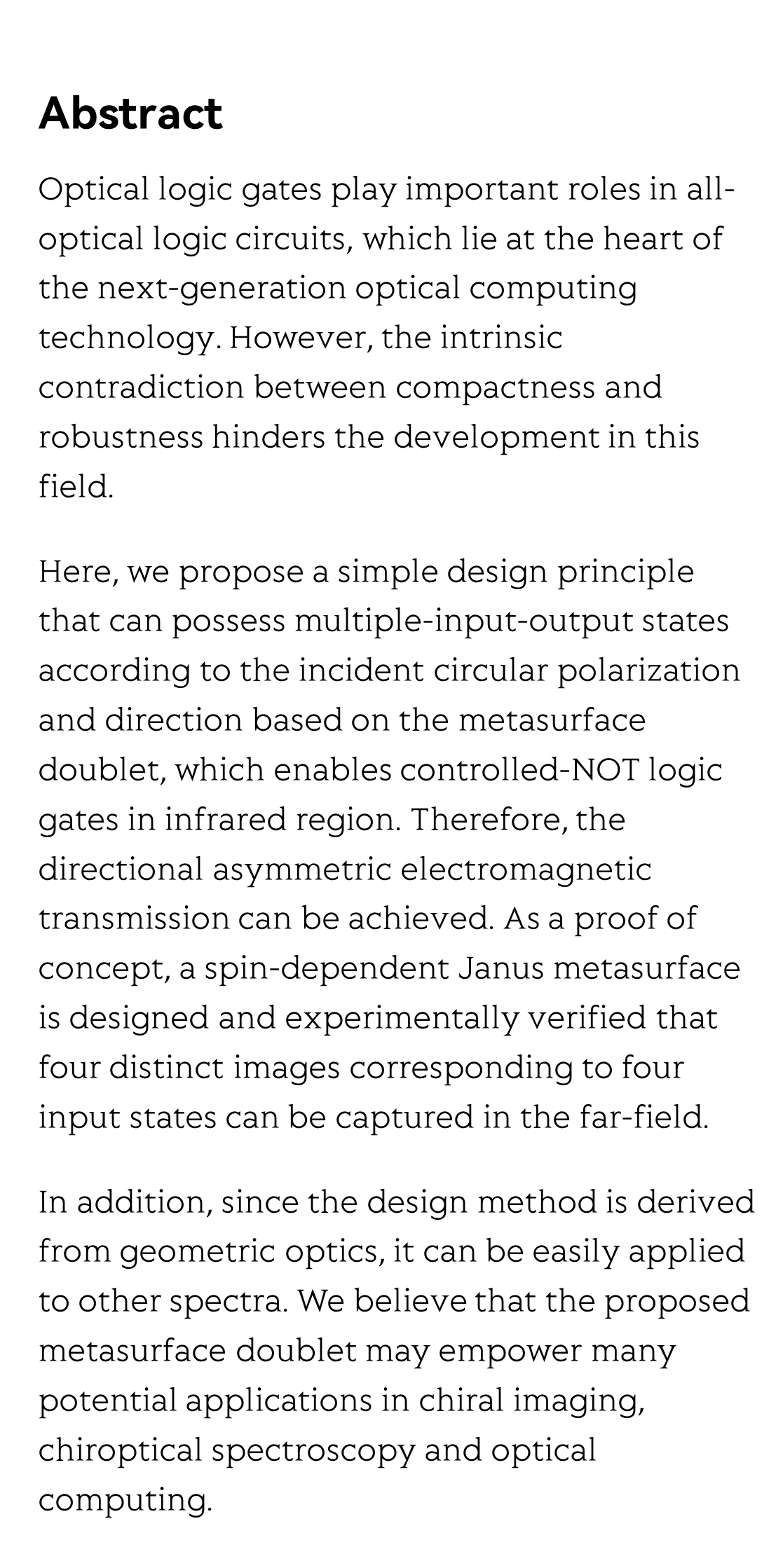

Optical logic gates play important roles in all-optical logic circuits, which lie at the heart of the next-generation optical computing technology. However, the intrinsic contradiction between compactness and robustness hinders the development in this field.

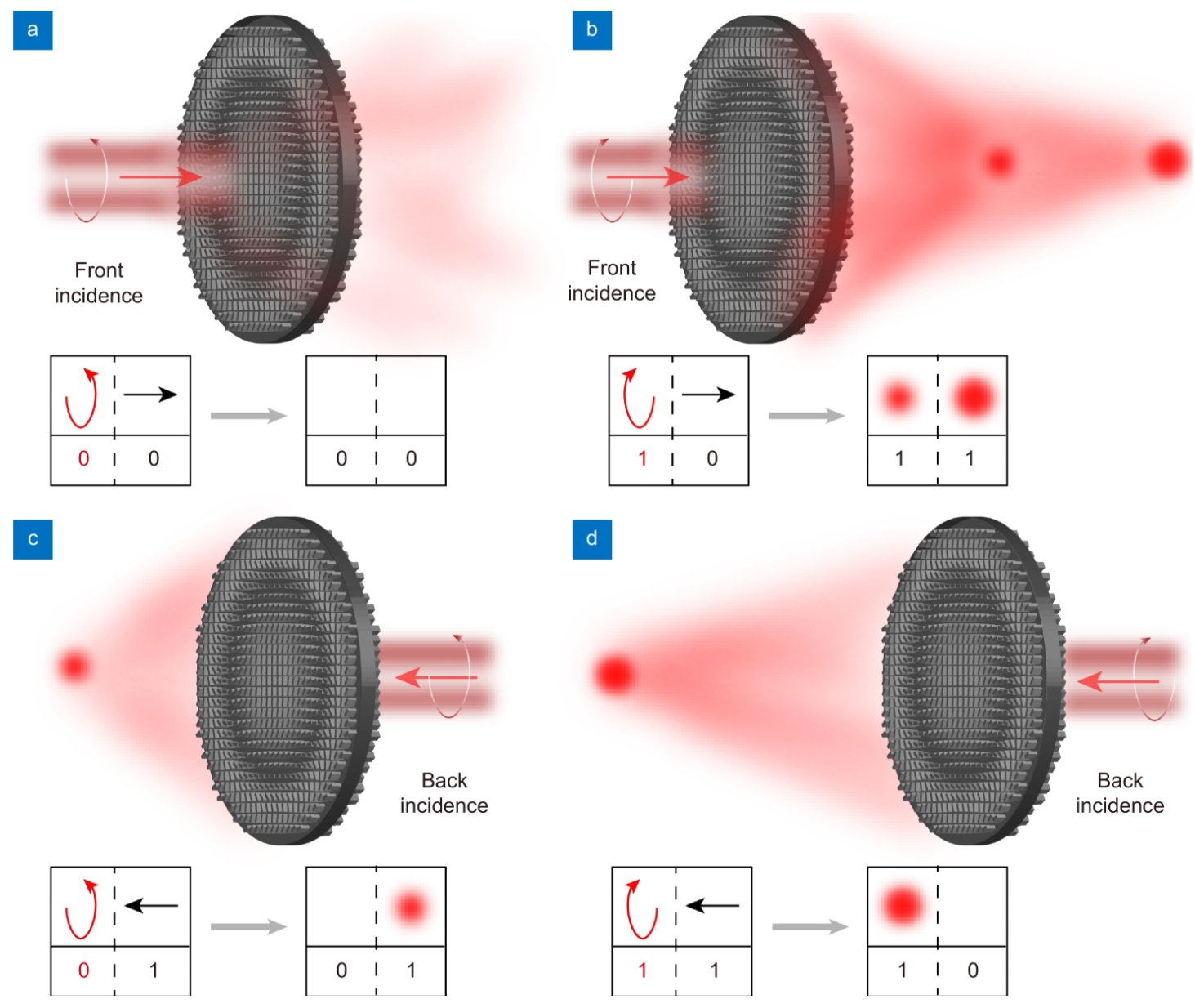

Here, we propose a simple design principle that can possess multiple-input-output states according to the incident circular polarization and direction based on the metasurface doublet, which enables controlled-NOT logic gates in infrared region. Therefore, the directional asymmetric electromagnetic transmission can be achieved. As a proof of concept, a spin-dependent Janus metasurface is designed and experimentally verified that four distinct images corresponding to four input states can be captured in the far-field.

In addition, since the design method is derived from geometric optics, it can be easily applied to other spectra. We believe that the proposed metasurface doublet may empower many potential applications in chiral imaging, chiroptical spectroscopy and optical computing.
All-optical controlled-NOT logic gate achieving directional asymmetric transmission based on metasurface doublet_1
All-optical controlled-NOT logic gate achieving directional asymmetric transmission based on metasurface doublet_2
All-optical controlled-NOT logic gate achieving directional asymmetric transmission based on metasurface doublet_3
