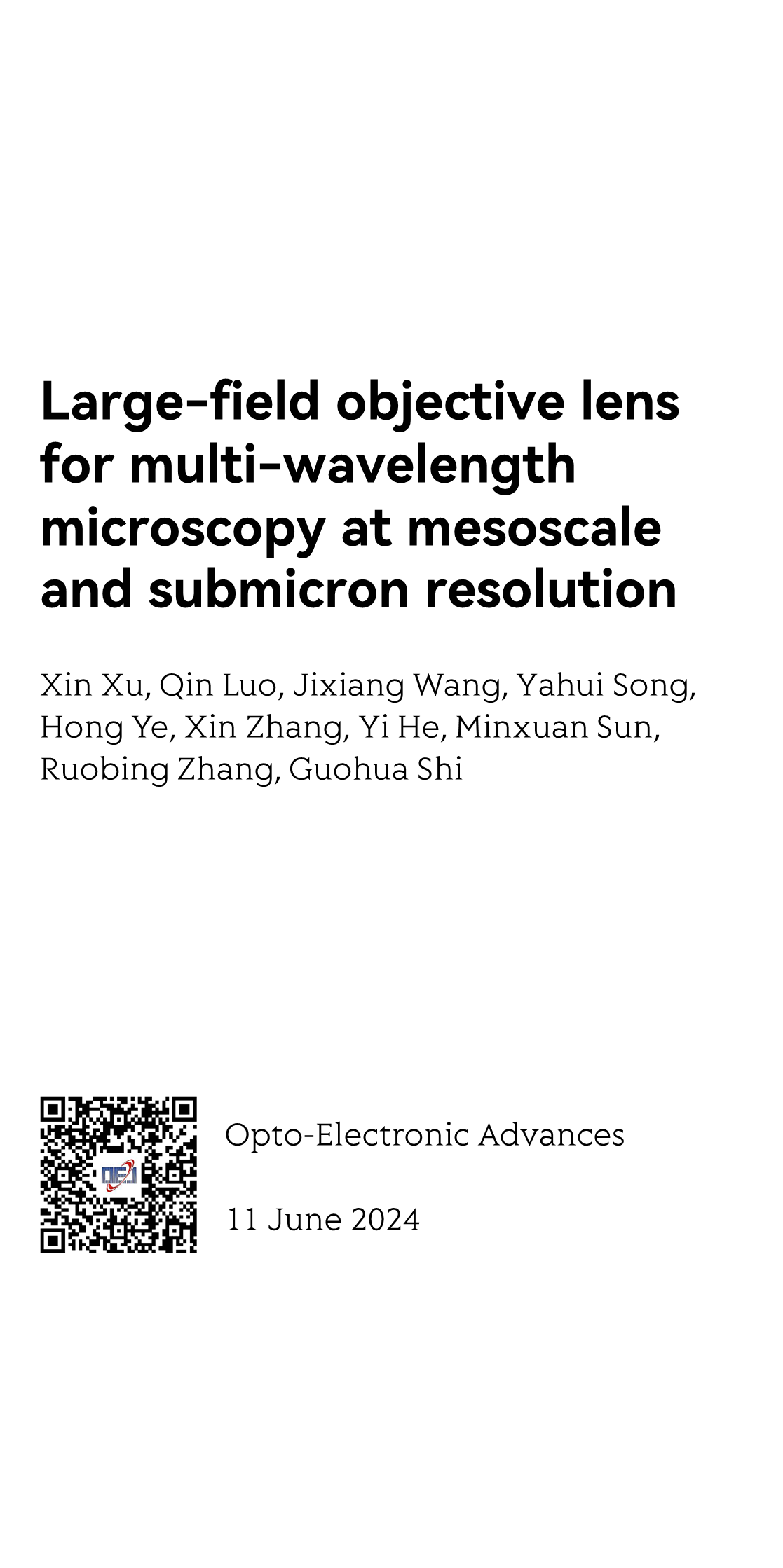

(Peer-Reviewed) Large-field objective lens for multi-wavelength microscopy at mesoscale and submicron resolution
Xin Xu 徐欣 ¹ ², Qin Luo 罗勤 ¹ ², Jixiang Wang 王吉祥 ¹ ², Yahui Song 宋雅慧 ¹ ², Hong Ye 叶虹 ², Xin Zhang 张欣 ², Yi He 何益 ², Minxuan Sun 孙敏轩 ¹ ², Ruobing Zhang 张若冰 ¹ ², Guohua Shi 史国华 ¹ ²
¹ School of Biomedical Engineering (Suzhou), Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei 230026, China
中国 合肥 中国科学技术大学 生命科学与医学部 生物医学工程学院（苏州）
² Jiangsu Key Laboratory of Medical Optics, Suzhou Institute of Biomedical Engineering and Technology, Chinese Academy of Science, Suzhou 215163, China
中国 苏州 中国科学院 苏州生物医学工程技术研究所 江苏省医用光学重点实验室
Opto-Electronic Advances
, 2024-06-11

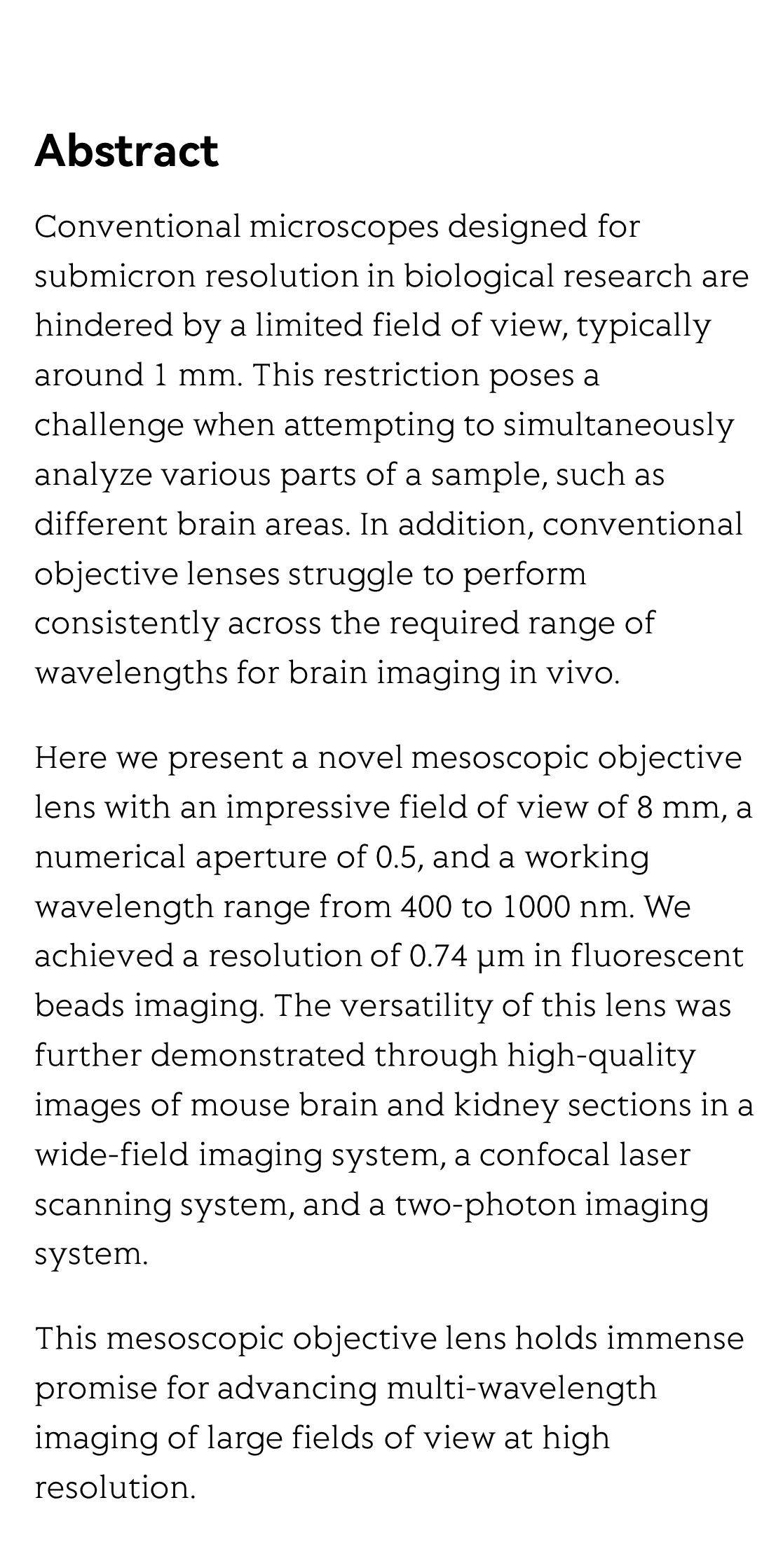

Abstract
Conventional microscopes designed for submicron resolution in biological research are hindered by a limited field of view, typically around 1 mm. This restriction poses a challenge when attempting to simultaneously analyze various parts of a sample, such as different brain areas. In addition, conventional objective lenses struggle to perform consistently across the required range of wavelengths for brain imaging in vivo.

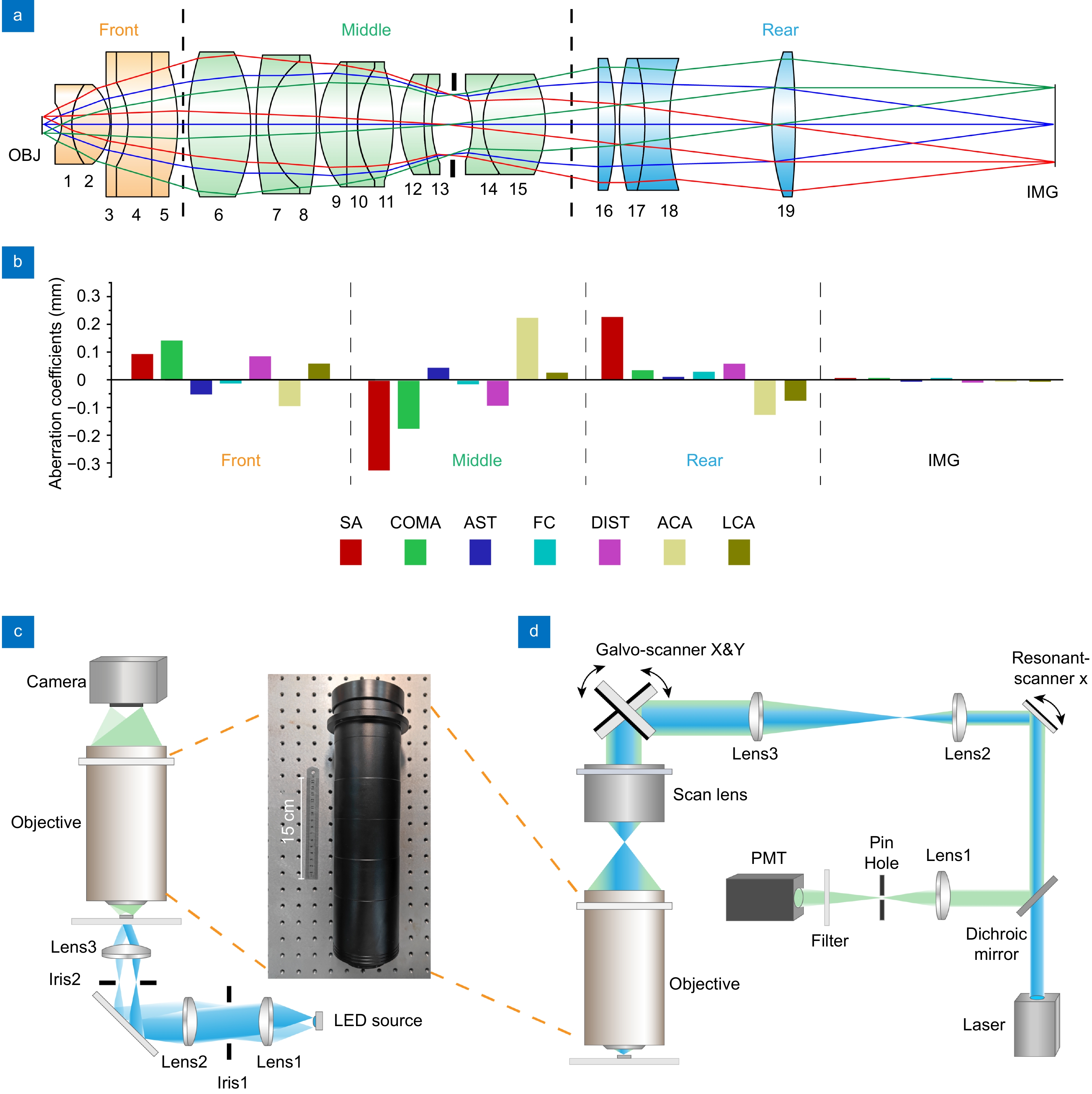

Here we present a novel mesoscopic objective lens with an impressive field of view of 8 mm, a numerical aperture of 0.5, and a working wavelength range from 400 to 1000 nm. We achieved a resolution of 0.74 μm in fluorescent beads imaging. The versatility of this lens was further demonstrated through high-quality images of mouse brain and kidney sections in a wide-field imaging system, a confocal laser scanning system, and a two-photon imaging system.
This mesoscopic objective lens holds immense promise for advancing multi-wavelength imaging of large fields of view at high resolution.
